Exposed-Fastened Metal Wall Panel — 36" Coverage — 3/4" Rib Height

The OEG U Panel is an exposed-fastened metal wall panel engineered for dependable performance in metal building wall applications. Its distinctive trapezoidal rib profile on 6" centers provides 36" of coverage with a 3/4" rib height, combining structural integrity with a streamlined appearance suited for a wide range of building types.

Built from high-strength steel with Galvalume or galvanized corrosion protection, the U Panel is offered in 26, 24, and 22 gauge configurations. Multiple premium finish options including PVDF, MS Colorfast45, and Acrylic-Coated Galvalume ensure lasting color retention and curb appeal across diverse climates and environments.

Key Features

- 36" coverage, 3/4" rib height

- Trapezoidal rib on 6" centers

- Available in 26, 24, and 22 gauge

- Optimized for wall applications

Applications

- Metal building wall systems

- Commercial building envelopes

- Industrial facility cladding

- Agricultural building walls

- Warehouse exteriors

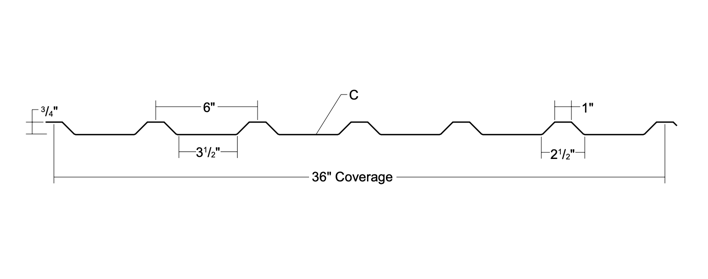

U Panel 3D View U Panel Profile
CORROSION PROTECTION

AZ55 per ASTM A 792 for unpainted Galvalume

AZ50 per ASTM A 792 for painted Galvalume

G90 per ASTM A 653 for Galvanized

PANEL DIMENSIONS

Coverage Width: 36"

Rib Height: 3/4"

Panel Length: 5' minimum, 45' maximum recommended

FINISHES

PVDF

MS Colorfast45

Acrylic-Coated Galvalume

AVAILABLE GAUGES

26 ga and 24 ga (standard)

22 ga (optional)

Testing & Approvals

Texas Windstorm - Evaluation RC-196

ICC Evaluation Report - ESR-2385

Fastener Information
PANEL FASTENER

To Wood: #10-14 XL Wood Screw

To Steel: #12-14 XL Self Drilling Screw

SIDE LAP FASTENER

1/4"-14 x 7/8" XL Stitch Screw

TRIM FASTENER

1/4"-14 x 7/8" XL Stitch Screw

Overdriven fasteners will cause panel distortions. Fasteners should extend 1/2" or more past the inside face of the support material. Thick panels or supports may require predrilling.
