Exposed-Fastened Metal Roof & Wall Panel — 36" Coverage — 3/4" Rib Height

The OEG PBU Panel is an exposed-fastened metal panel designed for roof and wall applications on metal building systems. Featuring a clean trapezoidal rib profile on 6" centers with 3/4" rib height and 36" coverage width, it delivers reliable weather protection and structural performance for commercial, industrial, and agricultural buildings.

Manufactured from high-strength steel with Galvalume or galvanized corrosion protection, the PBU Panel is available in 26, 24, and 22 gauge options. It accommodates a range of premium finishes including PVDF, MS Colorfast45, and Acrylic-Coated Galvalume to meet both functional and aesthetic requirements.

Key Features

- 36" coverage, 3/4" rib height

- Trapezoidal rib on 6" centers

- Available in 26, 24, and 22 gauge

- Minimum roof slope: 1:12

Applications

- Metal building roof systems

- Metal building wall systems

- Commercial and industrial buildings

- Agricultural structures

- Warehouses and storage facilities

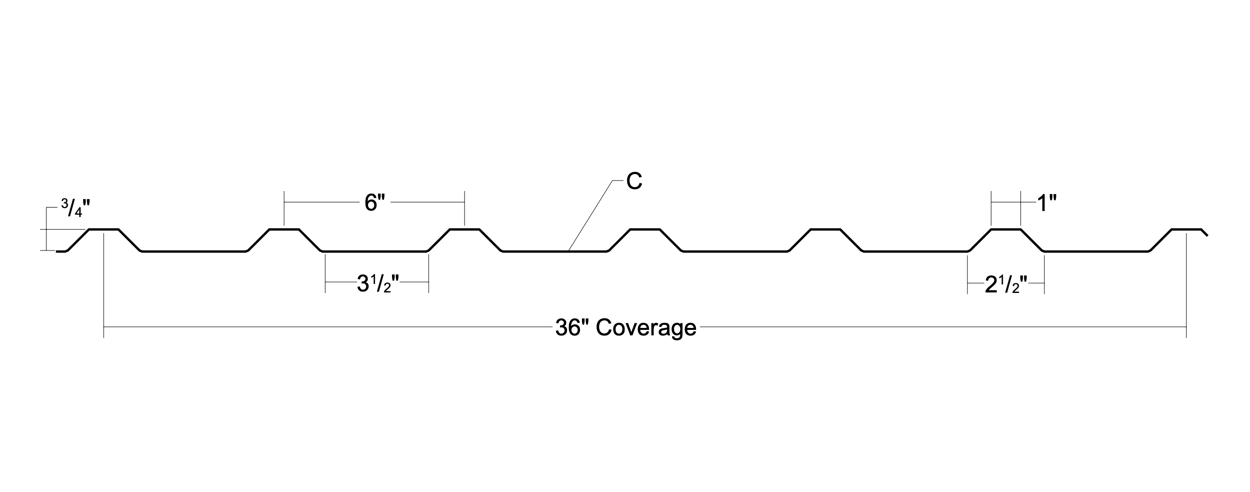

PBU Panel 3D View PBU Panel Profile
CORROSION PROTECTION

AZ55 per ASTM A 792 for unpainted Galvalume

AZ50 per ASTM A 792 for painted Galvalume

G90 per ASTM A 653 for Galvanized

PANEL DIMENSIONS

Coverage Width: 36"

Rib Height: 3/4"

Panel Length: 5' minimum, 45' maximum recommended

FINISHES

PVDF

MS Colorfast45

Acrylic-Coated Galvalume

AVAILABLE GAUGES

26 ga and 24 ga (standard)

22 ga (optional)

Testing & Approvals

Texas Windstorm - Evaluation RC-196

ICC Evaluation Report - ESR-2385

Fastener Information
PANEL FASTENER

To Wood: #10-14 XL Wood Screw

To Steel: #12-14 XL Self Drilling Screw

SIDE LAP FASTENER

1/4"-14 x 7/8" XL Stitch Screw

TRIM FASTENER

1/4"-14 x 7/8" XL Stitch Screw

Overdriven fasteners will cause panel distortions. Fasteners should extend 1/2" or more past the inside face of the support material. Thick panels or supports may require predrilling.
